DuraTRUE 行星减速机

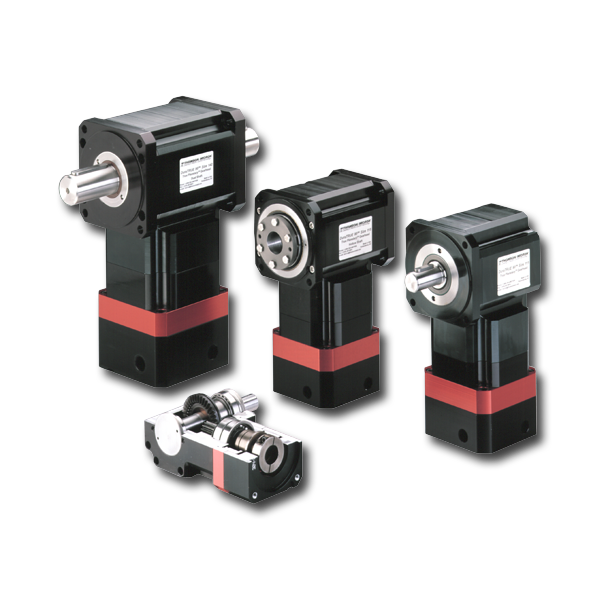

DuraTRUE 是一种利用Micron RediMount系统的高精度True行星减速机。 凭借多种轴配置,您可以在最小的机壳中设计您的系统,消除了对耦合部件的需求。 “T”形设计能够使用一台电机运行两个轴。 DuraTRUE 拥有多种齿轮比存货,可通过Micron Gearhead Express计划立即供货。 大多数TRUE行星减速机提供了两种技术: • RediMount Motor Mounting System 实现简单、无错和快速安装 • PowerTRUE 90 Technology, 独特的轮齿设计实现了较高的转矩密度

Global
北美以外的有限可用性

特点

  • 高转矩尺寸比 – 实现小型设计
  • 低齿隙 – 消除了由于空转而导致的定位错误
  • 惯量匹配 – 保持伺服系统稳定和处于控制状态
  • 高刚性 – 优化系统响应
  • 自动再润滑 – 消除了昂贵的维护费用以及停机时间
  • 高径向负载能力 – 将皮带轮和齿轮直接安装到输出轴上
  • 无错安装 – 兼容Redimount

规格



Ready for Immediate Delivery
Mounting Type Inline Right-angle Hollow Shaft
Right Angle
Dual Shaft
Right Angle
Precision 8 arc-minutes 8 arc-minutes 8 arc-minutes 8 arc-minutes
Frame Sizes (mm) 60, 90, 115, 142 60, 90, 115, 142 90, 115, 142 60, 90, 115, 142
Torque Capacity
Nm (lb-ft)
up to 834 (615) up to 842 (621) up to 865 (638) up to 865 (638)
Ratio Availability 3:1, 4:1, 5:1, 7:1
10:1, 15:1, 20:1
25:1, 30:1, 40:1
50:1, 70:1, 100:1
5:1, 6:1, 9:1, 10:1
12:1, 15:1, 20:1
25:1, 30:1, 40:1
50:1, 60:1, 75:1
90:1, 100:1
120:1, 125:1
150:1, 200:1
250:1, 300:1
400:1, 500:1
1:1, 2:1, 3:1, 4:1
5:1P, 5:1T, 6:1
9:1, 10:1, 12:1
15:1, 20:1, 25:1
30:1, 40:1, 50:1
60:1, 75:1, 90:1
100:1, 120:1
125:1, 150:1
200:1, 250:1
300:1, 400:1
500:1
1:1, 2:1, 3:1, 4:1
5:1P, 5:1T, 6:1
9:1, 10:1, 12:1
15:1, 20:1, 25:1
30:1, 40:1, 50:1
60:1, 75:1, 90:1
100:1, 120:1
125:1, 150:1
200:1, 250:1
300:1, 400:1
500:1
Radial Load Capacity
N (lbf)
up to 11150
(2507)
up to 11150
(2507)
up to 11150
(2507)
up to 11150
(2507)
Mounting System RediMount RediMount RediMount RediMount
