4 通道数字输入终端,安全

4 通道数字输入终端,安全

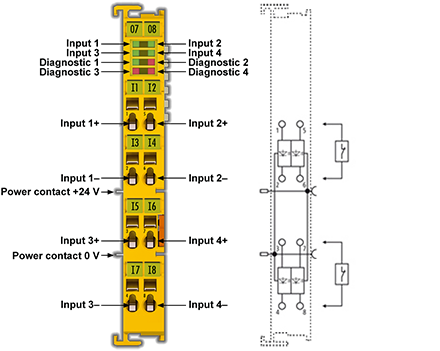

AKT2G-SDI-004 是一个具有 4 个故障保护输入的数字输入终端。采用双通道连接模式,符合 IEC 61508:2010 SIL 3、DIN EN ISO 13849-1:2015 (Cat 4, PL e)、UL508、UL1998 和 UL991 标准的要求。

Global
2 通道数字输入

规格

有关安全等级 I/O 终端的应用和使用的重要信息,请参考 KAS 网站帮助

技术数据 AKT2G-SDI-004
输入数量 4
状态显示

4(每个输入端有一个绿色指示灯)

反应时间(读取输入/写入 E-bus)

典型值: 4 ms,

maximum: see error reaction time

Error reaction time

≤ watchdog time

Cable length between sensor and terminal

unshielded max. 100 m (0.75 or 1 mm²) shielded max. 100 m (0.75 or 1 mm²)

Output current of the clock outputs

typically 10 mA, max. 15 mA

Input process image

6 bytes

Output process image

6 bytes

AKT2G-SDI-004 supply voltage (PELV)

24 VDC (–15% / +20%)

Signal voltage "0" inputs

-3 V to 5 V (EN 61131-2, type 3) see section Characteristic curve of the inputs

Signal voltage "1" inputs

11 V to 30 V (EN 61131-2, type 3) see section Characteristic curve of the inputs

Current consumption of the modular electronics at 24 V (without current consumption of sensors)

4 channels occupied: typically 12 mA

0 channels occupied: typically 1.4 mA

Current consumption via E-bus

4 channels occupied: approx. 200 mA

Power dissipation of the terminal

typically 1 W

Electrical isolation (between the channels)

no

Electrical isolation (between the channels and the E-bus)

yes

Insulation voltage (between the channels and the E-bus, under common operating conditions)

insulation tested with 500 VDC

Dimensions (W x H x D)

12mm x 100mm x 68mm

Weight

approx. 50 g

Permissible ambient temperature (operation) up to SW 05

0 °C to +55 °C (see note in Installation position and minimum distances)

Permissible ambient temperature (operation) from SW 06 (week 02/2014)

-25°C to +55 °C (see note in Installation position and minimum distances)

Permissible ambient temperature (transport/storage)

-40°C to +70°C

Permissible air humidity

5% to 95%, non-condensing

Permissible air pressure (operation/storage/transport)


750 hPa to 1100 hPa

(this corresponds to a height of approx. -690 m to 2450 m over sea level assuming an international standard atmosphere)

Climate category according to EN 60721-3-3

3K3

(the deviation from 3K3 is possible only with optimal environmental conditions and also applies only to the technical data which are specified differently in this documentation)

Permissible level of contamination according to EN 60664-1

level of contamination 2

(comply with the section Safety I/O Maintenance)

Impermissible operating conditions

Safety terminals must not be used under the following operating conditions:

•  受到电离辐射影响的环境(超过自然环境辐射水平)

•  腐蚀性环境

•  导致总线端子出现不可接受脏污的环境

电磁抗扰度/发射

符合 EN 61000-6-2 / EN 61000-6-4 标准

抗振动/抗冲击性

符合 EN 60068-2-6 / EN 60068-2-27 标准

冲击

15 g,所有三个轴的脉冲持续时间为 11 毫秒

防护等级

IP20

容许工作温度

在控制柜或接线盒中,最低防护等级为 IP54,符合 IEC 60529 标准

容许安装位置

安装位置和最短距离部分

认证

CE、cULus

下载中心

文件标题 文件语言 发布日期 共享 URL
AKT2G I/O Manual EN English
共享 URL /sites/default/files/public_downloads/AKT2G_IO.pdf
文件标题 文件语言 发布日期 共享 URL
AKT2G-SDI-004-000 TUV Certification English
共享 URL /sites/default/files/public_downloads/AKT2G-SDI-004%20TUV%20Certitication%20Rev.00.pdf
AKT2G-SDO-004-000 TUV Certification English
共享 URL /sites/default/files/public_downloads/AKT2G-SDO-004%20TUV%20Certitication%20Rev.00.pdf
Kollmorgen EU Declaration of Conformity AKT2G (DE) German
共享 URL /sites/default/files/public_downloads/ce_AKT2G%20IO_d.pdf
Kollmorgen EU Declaration of Conformity AKT2G (DE) English
共享 URL /sites/default/files/public_downloads/ce_AKT2G%20IO_e.pdf
