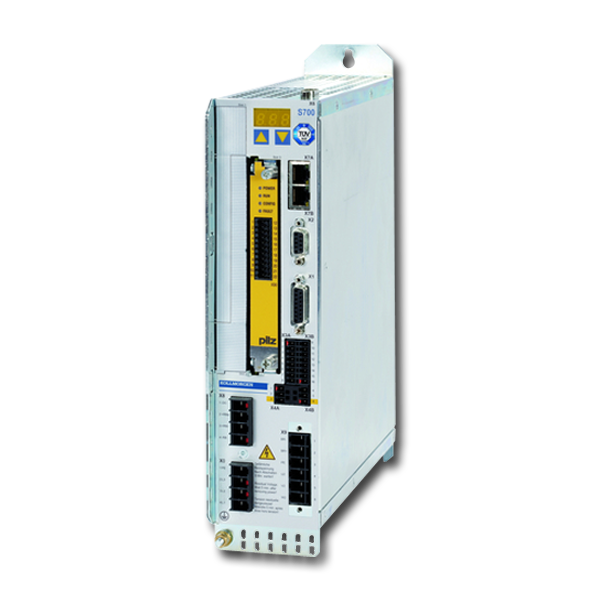

S700 伺服驱动器

如今,机械和过程工程师面临诸多挑战,例如对产品和服务的种类日益增长的需求,对更高生产效率的需求,以及对供应链可用性和稳定性的需求。 凭借新型的S700伺服驱动器,科尔摩根现在能够提供应对这些挑战的产品。 S700是一种具有扩展功能的全数字化伺服放大器,是复杂驱动任务的理想选择。 鉴于越来越多的工程师转向基于以太网的通信,例如EtherCAT和SynqNet,科尔摩根通过将以太网连接集成到新驱动器中,使S700能够满足未来需求。 S700板载接口使客户不必依靠额外的扩展卡来实现此类兼容性。SFD3 and Hiperface DSL可选单电缆支持。

Global
产品全球有售

特点

提高生产效率

  • 高速电流、速度和位置控制产生更高的机器转速
  • 安全功能SIL2 / SIL3提高机器可用性
  • 内置的IEC 61131宏编程语言使运动更加灵活

库存中的备用产品类型更少

  • 多接口设计可实现与所有标准控制器的连接
  • 多反馈功能与所有常用的反馈系统兼容

占用空间更小的开关柜

  • 板载EMC滤波器
  • 集成电源和制动电阻器

更快速的设置

  • 使用存储卡更新参数与固件
  • 通过连接器进行所有连接
  • 自动调整

系统成本更低

  • 板载EtherNet可以在无需添加硬件的情况下实现EtherCAT等实时现场总线
  • 单一设备实现所有应用变化
  • 灵活的接口使配置更加简单

特点

  • 经过EAC,CE, UL, GOST-R, TÜV安全测试
  • 直接接地1或3相电源供电,110V - 480V,50-60hz交流线路
  • 拥有最大连续额定输出电流的型号:1.5 - 72A/相
  • 安全扩展卡具有SIL2或SIL3功能,例如SDI、SLS、SS1、SS2、SBC等
  • EtherCAT和CANopen板载总线通信
  • 存储卡插槽,用于备份参数和固件
  • 经过优化的旋转变压器接口
  • 自动调整
  • 齿槽效应抑制
  • 板载安全转矩关闭功能(STO)
  • 市场上最快的反馈评估

规格

额定数据 DIM S701 S703 S706 S712 S7120P S724 S7240P S748 S772
额定线电压 V~ 3 x 208V-10% … 3 x 480V+10%, 50/60 Hz
针对S1操作的额定线功率 kVA 1,1 2,2 4,5 9 9 18 18 35 50
辅助电源 V=     24
额定直流线路电压 V=     290-675
额定输出电流(均方根值)
-At 3 x 208 V A RMS 2,5 5 6 12 12 24 24 48 72
- At 3 x 230 V A RMS 2 4 6 12 12 24 24 48 72
- At 3 x 400 V A RMS 1,5 3 6 12 12 24 24 48 72
-At 3 x 480 V A RMS 1,5 3 6 12 12 24 24 48 70
峰值输出电流(均方根值) A RMS 4,5 9 18 24 30 48 72 96 140

尺寸

  DIM S701 S703 S706 S712 S7120P S724 S7240P S748 S772
包括风扇的高度(H) mm 345 348 385
宽度(W) mm 70 100 190
包括连接器的深度(D) mm 243
