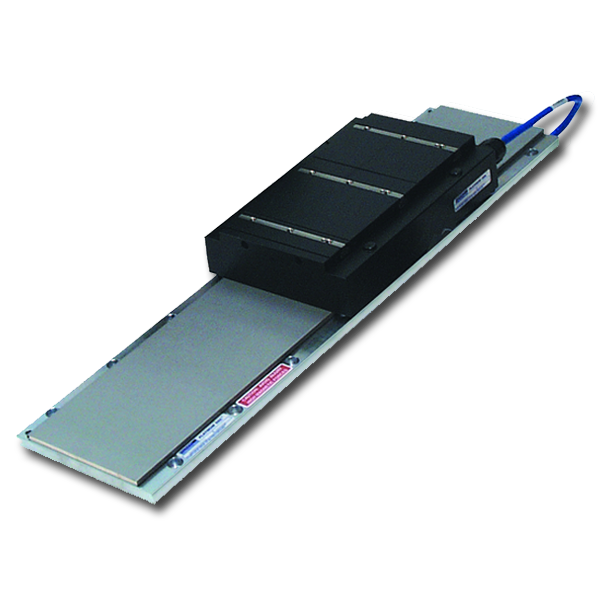

DDL 直线电机

DDL 直线电机是一种采用扁平设计并且与从动负载直接耦合的电机。由于消除了对机械传动组件的使用，因此具有卓越的性能、刚性、动态速度与加速度、定位准确性以及运行效率。另外，直接驱动直线电机结构紧凑、噪音小、无需维护并且运转顺畅无误。

联系我们

产品全球有售

提升机器性能

通过将负载与电机直接耦合，将可以提高定位准确性、改进速度调节以及减少能源使用量，这些将有助于打造性能更优的机器。

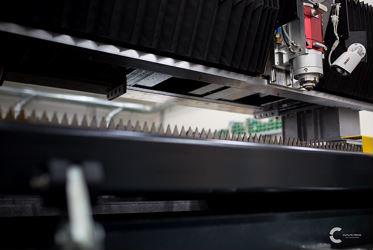

三维切割成功案例

延长使用寿命

降低机器设计的复杂性。将容易发生故障的传动方式改为直接传动负载，将会降低出现严重故障的风险，以及减少费用高昂的预防性维护。最终将有助于减少机器的总成本。

进行产品选型

特点

最高额定推力—传动大重量物体的理想之选
保持机加工与其他工艺推力所需的刚性
零维护
无滚珠螺杆、齿轮箱、齿条和小齿轮或者皮带与滑轮
零反向间隙

刚性高
定位准确性高
机械结构紧凑
机器部件数量减少
运行顺畅

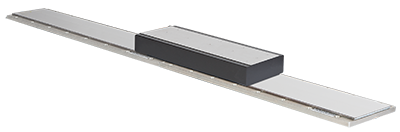

有铁芯直线电机

有铁芯直线电机将线圈缠绕在硅钢板上，通过单面磁路最大限度提高生成力。这种电机采用特殊的电磁设计，可提供最大额定推力，电机常数 Km 高，确保热损耗低，并且齿槽力小。这种电机推力大，是传动大重量物品的理想之选，可在机加工与处理过程中保持刚性。

有铁芯电机技术参数

非冷式

	最大力 (N)
	连续		峰值
	N	(lbf)	N	(lbf)
IC11	144 - 1197	32.4 - 269	320 - 2135	71.9 - 480
IC22	280 - 2393	62.9 - 538	624 - 4156	140 - 934
IC33	431 - 3590	96.9 - 807	944 - 6291	212 - 1414
IC44	560 - 4786	126 - 1076	1259 - 8388	283 - 1885
ICH11	175 - 1569	39.3 - 352.7	405 - 3372	91 - 758.1
ICH22	342 - 3067	76.9 - 689.5	710 - 5918	159.6 - 1330.4
ICH33	511 - 4016	114.9 - 902.8	1065 - 9545	239.4 - 2145.8
ICH44	600 - 5341	134.9 - 1200.7	1527 - 12726	343.3 - 2860.9
ICD05	57 - 157	12.8 - 35.3	165 - 588	37.1 - 132
ICD10	104 - 315	23.4 - 70.8	330 - 1099	74.2 - 247

水冷型

	最大力 (N)
	连续		峰值
	N	(lbf)	N	(lbf)
IC11	254 - 1712	57.1 - 385	315 - 2102	70.8 - 473
IC22	519 - 3458	117 - 777	630 - 4204	142 - 945
IC33	769 - 5135	173 - 1154	945 - 6306	212 - 1418
IC44	1036 - 6916	233 - 1555	1260 - 8407	283 - 1890

选型指南设计工具

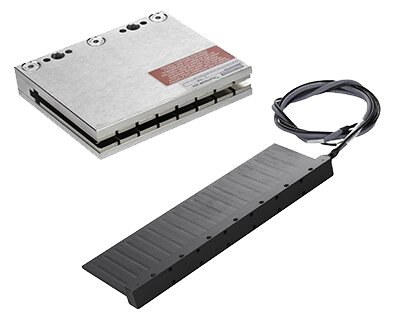

无铁芯直线电机

无铁芯直线电机没有供线圈缠绕的铁芯或插槽。因此这种电机齿槽效应为零，重量轻并且线圈组与磁路之间无任何引力。这些特点非常适合于需要非常小的轴承摩擦力、对较轻负载具有高加速度，以及在超低速度条件下依然可确保最高恒速的应用。模块化设计磁路由两排磁铁构成，可最大限度提高产生的推力，以及为磁路提供磁通回路。

无铁芯电机技术参数

	最大力 (N)
	连续		峰值
	N	(lbf)	N	(lbf)
IL06	30.3 - 82.8	6.81 - 18.6	120 - 400	27 - 89.9
IL12	62.1 - 148	14 - 33.3	240 - 800	54 - 180
IL18	92.1 - 211	20.7 - 47.4	360 - 1200	80.9 - 270
IL24	109 - 262	24.5 - 58.9	480 - 1600	108 - 360

选型指南设计工具
