XTrue Large

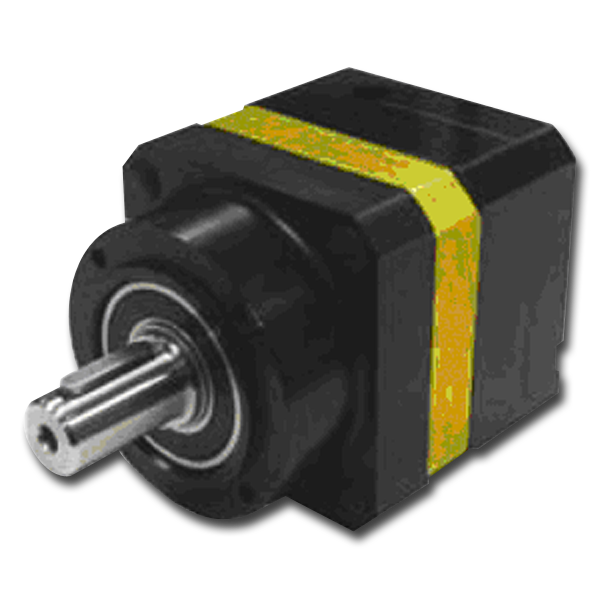

XTRUE 行星减速机

XTRUE系列是一种新型的精密减速机,补充了Micron True行星减速机系列。 凭借改进的负载能力、灵活的安装系统、简单的直接替换方式以及对EU Directive 2002/95/EC (RoHS) 的遵从性,XTRUE通过经济而高效的解决方案提供了强大的功能。 我们提供 RediMount 电机安装系统, 可实现XTRUE速机的简单、无误和快速连接。 让科尔摩根助您选型! Micron MOTIONEERING: Micron减速机定制、选型和定价工具可以帮助您定制电机,以满足高扭矩体积比、高抗刚度和低齿隙的高精度运动控制应用。 注: 二维/三维模型可以通过Micron MOTIONEERING下载

Global
北美以外的有限可用性

特点

  • True行星齿轮可提高最大转矩、降低齿隙并实现更安静的运行。
  • 灵活的安装系统: RediMount 系统通过简单的3步即可安装至任何电机:对齐、安装和拧紧。
  • 螺纹面输出接口
  • 高性价比、可靠的齿轮减速
  • 总成和所有组件都满足EU 指令 2002/95/EC (RoHS)

规格



Ready for Immediate Delivery
Mounting Type Inline
Precision 13 arc-minutes
Frame Sizes (mm) 40, 60, 80, 120, 160
Torque Capacity
Nm (lb-ft)
up to 876 (646)
Ratio Availability 3:1, 4:1, 5:1, 7:1, 8:1, 10:1, 15:1, 20:1, 25:1, 30:1, 40:1, 50:1, 70:1, 100:1
Radial Load Capacity
N (lbf)
up to 2300 (517)
Mounting System RediMount





下载中心

文件标题 文件语言 发布日期 共享 URL
True Planetary Gearheads Installation EN English
共享 URL /sites/default/files/public_downloads/True_Planetary_Gearheads_Installation_en-US_rev2008.pdf
标题 语言 发布日期 共享 URL
Kollmorgen Catalogo Automazione e Motion Control IT Italian 共享 URL查看
Kollmorgen Automation and Motion Control English(英语) 共享 URL查看
Kollmorgen otomasyon ve hareket kontrol çözümleri kataloğu TR Turkish 共享 URL查看
True Planetary Gearheads Brochure de-DE rev2005 English(英语) 共享 URL查看
True Planetary Gearheads Brochure it-IT 2005 English(英语) 共享 URL查看
True Planetary Gearheads Catalog EN English(英语) 共享 URL查看
科尔摩根运动控制及伺服系统解决方案 Chinese, Simplified(中文) 共享 URL查看

These 3D models are intended to guide your design activities and may be used as reference information. Be sure to consult a Kollmorgen expert to ensure you have the most current and accurate information for critical aspects of design work.

文件标题 文件语言 发布日期 共享 URL
Blue Guide English, German
共享 URL https://eur-lex.europa.eu/legal-content/EN/TXT/?uri=OJ%3AC%3A2022%3A247%3ATOC
