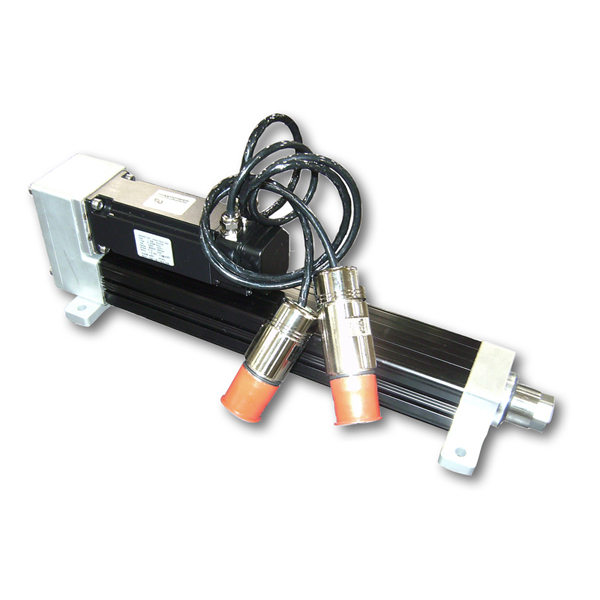

EC1 系列电动缸
EC1系列电动缸系统提供了有限的灵活应用解决方案 – 降低了成本并将电动缸框架规格减少了30-40%。该小型封装设计特别适合气动应用的纸加工。
规格
|
MECHANICAL SPECIFICATIONS |
Ball Screw Version |
|---|---|
|
Max. Stroke Length, mm (in) |
200 (7.87) |
|
Screw Lead, mm/rev (in/rev) |
3.175 (.125) |
|
Screw Diameter, mm (in) |
9.525 (.375) |
|
Unit Backlash, mm (in) |
0.38 (0.015) |
|
Dimensional Standard |
Metric ISO6431 Std. |
|
Bore Size, mm (in) |
30 (1.2) |
|
Motor Mount |
parallel or inline |
|
PERFORMANCE SPECIFICATIONS |
Travel life standards of 25.4 km (1,000,000 in) |
|
Max. Thrust Force, N (lbf) |
667 (150) |
|
Max. Velocity, m/s (in/s) |
0.33 (13) |
|
Max. Rated Duty Cycle |
100 |
|
Std. Operating Temp Range, °C (°F) |
-30 to +70 (-22 to +158) |
|
Environment |
IP54 Std. IP65 Opt. |
