AKD 伺服驱动器
科尔摩根 AKD 系列组成了完善而齐备的基于以太网的伺服驱动器/伺服放大器系列产品，该系列产品运行速度快、功能丰富、应用灵活，并且能够快速轻松地集成到任何应用中。AKD 采用即插即用式的调试方法，可确保即时、无缝地操作您机器中的任何部件。此外，无论您有何应用需求，AKD 总能提供出色的伺服性能、通信方式和功率级别，且占用空间极小。
产品全球有售
特点
特点
- 可嵌入我们创新的科尔摩根 KAS自动化组件，从而打造高性能单轴与多轴系统
- 科尔摩根 WorkBench 图形用户界面确保轻松设置与编程
- 与科尔摩根电机可实现即插即用
- 配备螺钉接线端子 I/O 连接器的光隔离 I/O
- 高带宽转矩与速度环。出色的数字电流环路。

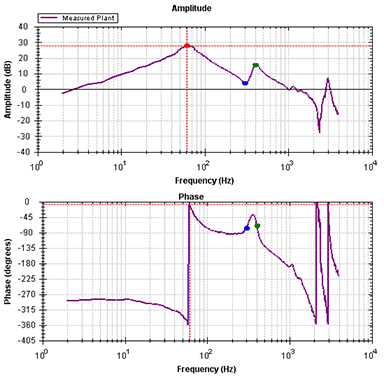

- 基于向导的全频自动调谐
- 通过与 PC 兼容的 TCP/IP 以太网服务通道快速获取数据
- 实时性能反馈
- 反馈装置：智能反馈装置 (SFD)、EnDat2.2 与 2.1、BiSS、模拟正弦/余弦编码器、增量编码器、HIPERFACE 和分解器
- 多种总线用于系统优化，例如：EtherCAT、EtherNet/IP、PROFINET RT、Modbus/TCP、CANopen 与 SynqNet。
- 通过 SIL 认证的超负荷电压、电流与温度检测功能，确保更高可靠性
- 提供可增加 I/O、添置 NVRAM 与提升处理能力的扩展卡
优点
- 使用简便，即插即用，高级自动调谐，并且配备用于编程与故障排除的直观图形界面
- 同类中更快速的驱动器，确保精确运动和高生产力
- 用途广泛，支持多种以太网连接方式、反馈装置、总线以及更多选件
- 设计坚固紧凑，具有更胜一筹的功率密度
- 功率范围广，适合几乎任何应用要求
规格
| 120/240 Vac 1Ø/3Ø (85-265 VAC) |
持续电流 (安) | 峰值电流 (安) | 驱动持续输出 功率 (瓦特) |
|---|---|---|---|
| AKD-x00306 | 3 | 9 | 1100 |
| AKD-x00606 | 6 | 18 | 2000 |
| AKD-x01206 | 12 | 30 | 4000 |
| AKD-x02406 | 24 | 48 | 8000 |
| 480 Vac 3Ø (187-528 VAC) |
持续电流 (安) | 峰值电流 (安) |
驱动持续输出 功率 (瓦特) |
| AKD-x00307 | 3 | 9 | 2000 |
| AKD-x00607 | 6 | 18 | 4000 |
| AKD-x01207 | 12 | 30 | 8000 |
| AKD-x02407 | 24 | 48 | 16,000 |
| AKD-x04807 | 48 | 96 | 32,000 |
